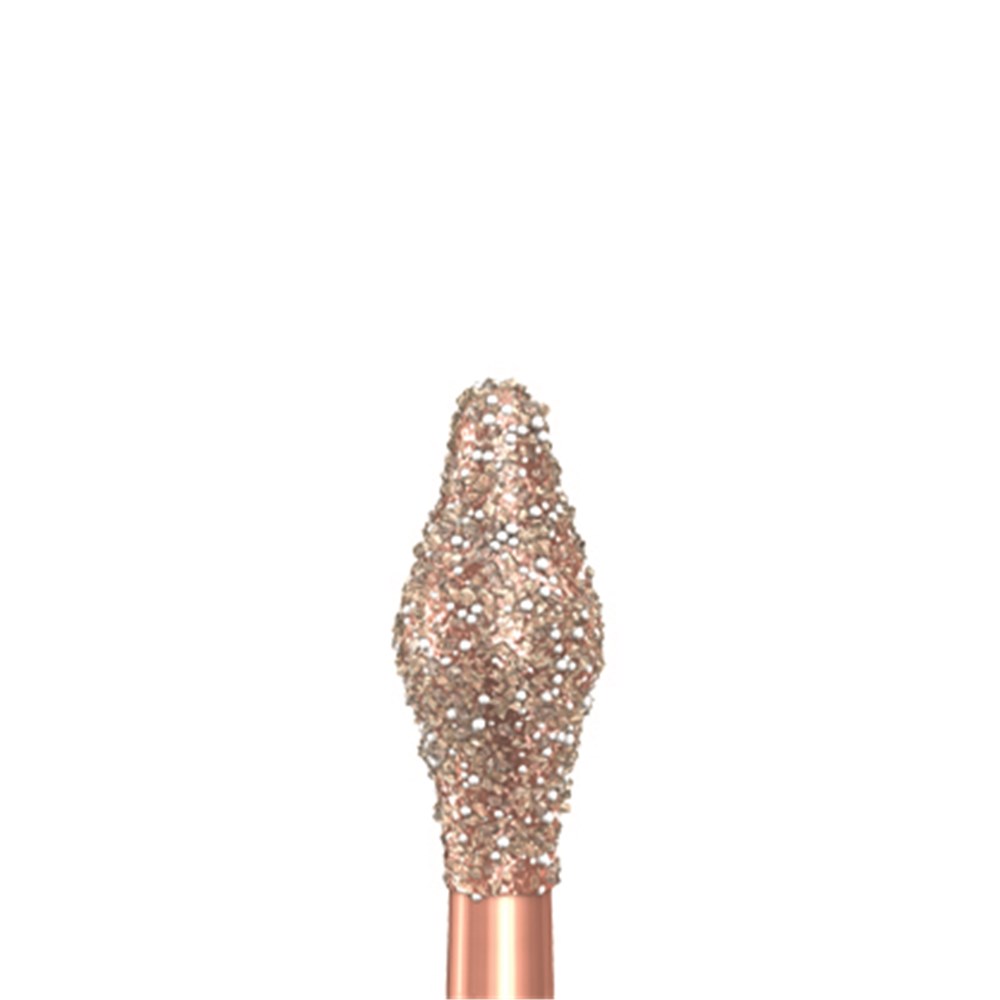

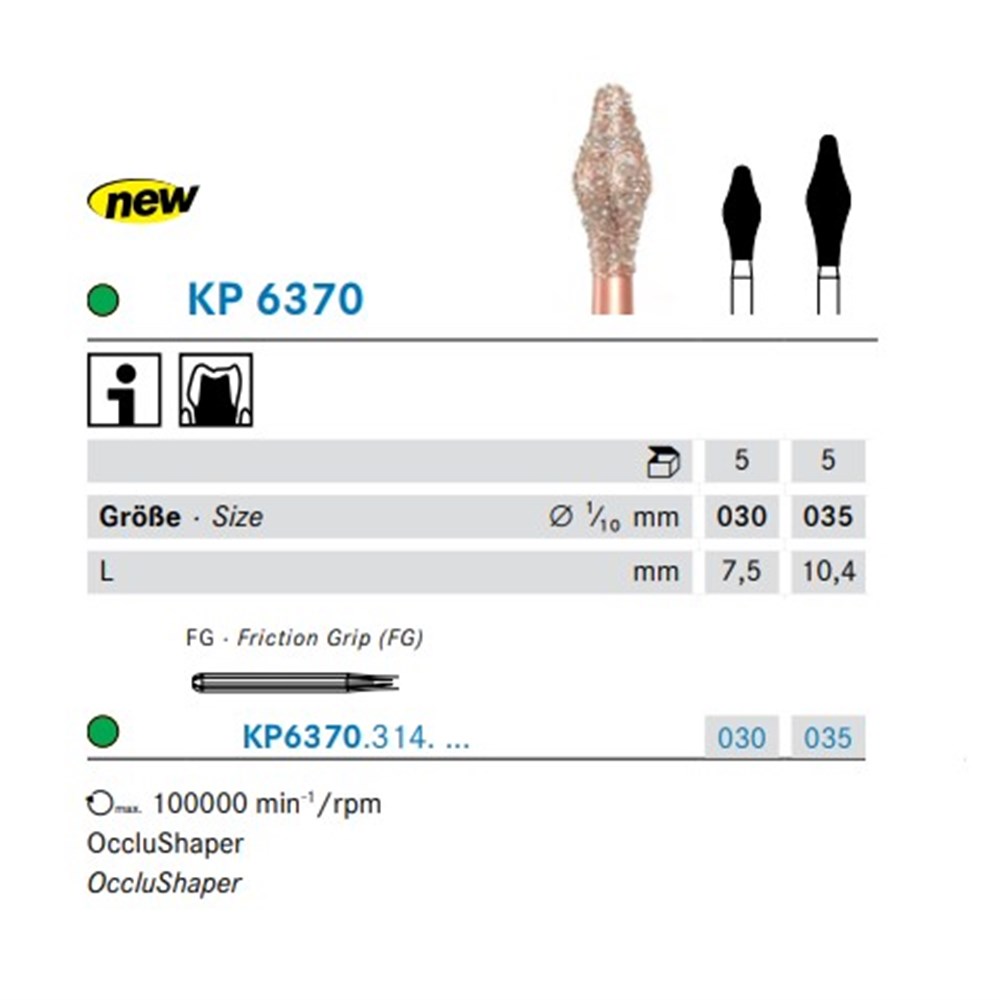

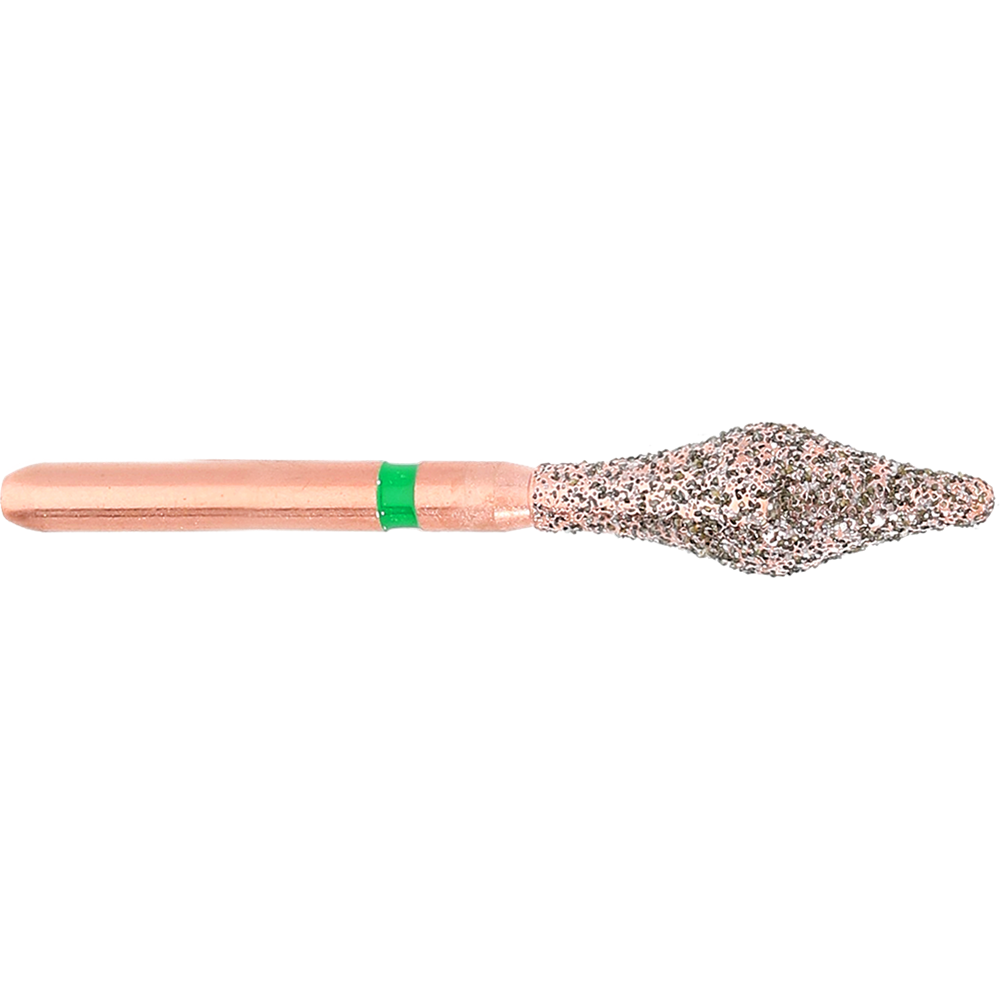

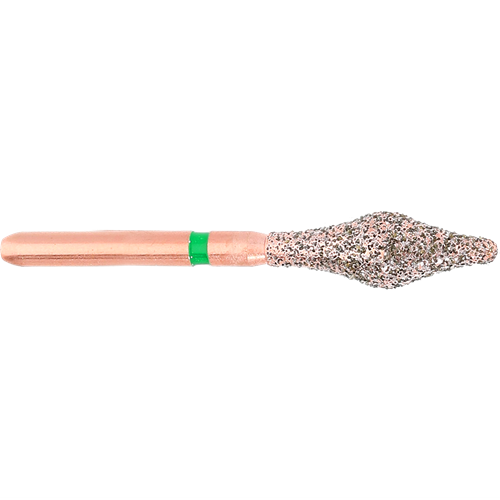

DIAO - KP6370 is an occlu shaped coarse, friction grip diamond used for occlusal contouring in crown preparations. FG 314 Size 035 with length of 10.4mm.

The DIAO - KP6370 is a coarse diamond used for crown preparation.

The KP370 has a unique shape combines both concave and convex shapes for a perfect fit on occlusal surfaces.

Excellent control

Precise cutting

Long-lasting sharpness

Easily recognizable with its rose gold color

Directions: for use:

Use at an optimum speed of 160,000 rpm, preferably in a red-contra angle or alternatively in a turbine

Do not use at a speed of over 300,000 rpm in a turbine

Always provide sufficient spray cooling of at least 50 ml/min

For good preparation results, the surface should be smoothed with a finisher of matching shape after the initial-preparation

The instruments remove substance very effectively. Therefore, only low pressure (<2N) needs to be applied during work

DIAO Diamonds

Perfect your preps with Komet's DIAO, a one-of-a-kind diamond designed with pearls for precise cutting, excellent control and long-lasting sharpness.

Feel the Difference

DIAO gives you an exceptional amount of control to:

Remove material quikcly and effortlessly. A coarse diamond with out the chatter.

Efficiently remove tooth structure with less pressure

Outstanding Efficiency

Save more chair time with DIAO:

27% greater initial sharpness than similar coarse diamond instruments*

34% longer service life than similar coarse diamond instruments*

*Based on in-house studies
