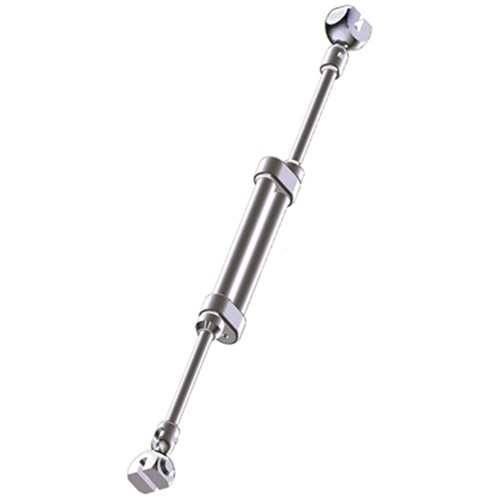

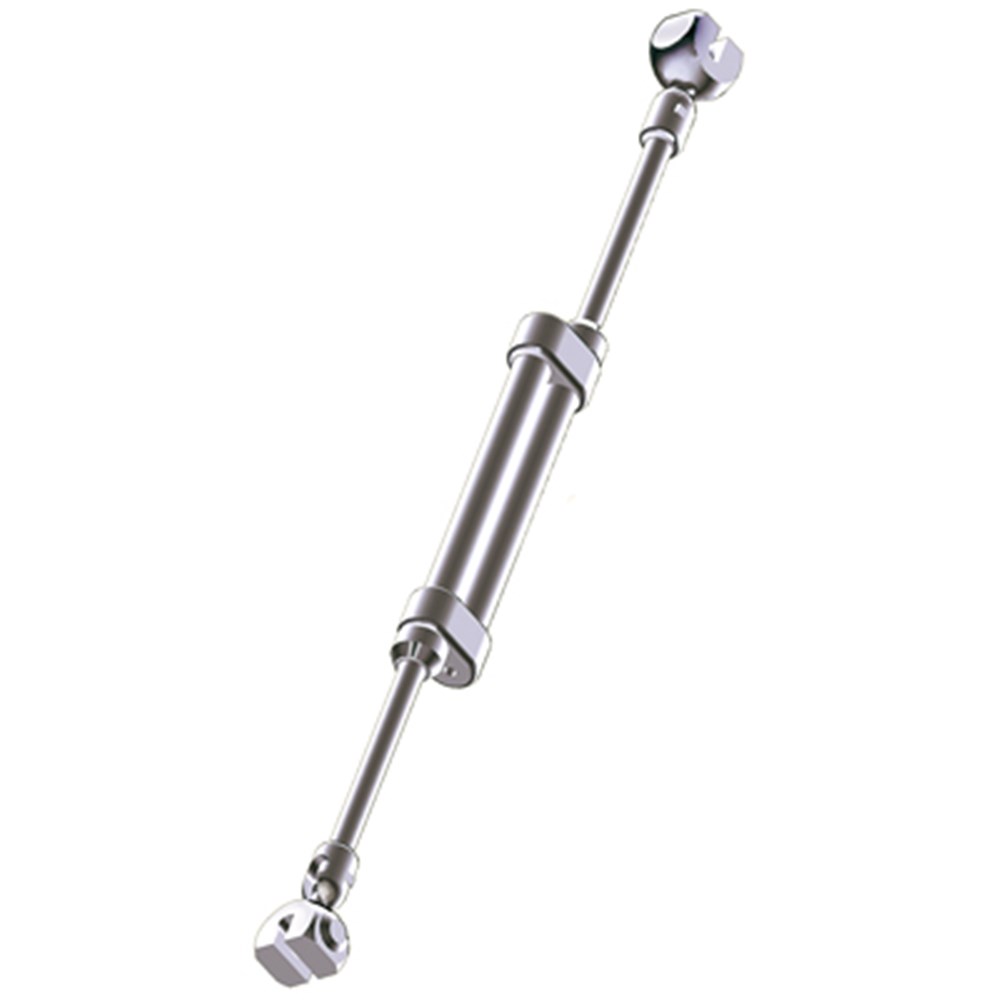

NAOL Twin Force Bite Corrector Double Lock Standard

Double Lock Design - Clamps directly onto the archwire in both the upper and lower without having to take the archwire out. Double Lock Design - With Titanium Clamps and Screws. Continual Dual Force Technology for fast, yet gentle continuous forces to the maxilla and mandible.

Class II and Class III Correction.

• No Assembly or Lab Work Required.

• Treats both Extraction and Non-Extraction Cases.

• Ideal for Non-Compliant Patients Two Sizes available.

Class II Measurement:

• Have the patient bite down.

• Measure from the distal edge of the Lower Cuspid Bracket to the Mesial End of the Upper 1st Molar Tube.

• Minimum to Maximum   27mm - 36mm    Standard  #424-215Ti

• Minimum to Maximum   23mm - 32mm    Small   #424-216Ti

Class III Measurement:

• Have the patient bite down.

• Measure from the distal edge of the Upper Cuspid Bracket to the Mesial End of the Lower 1st Molar Tube.

• Minimum to Maximum   27mm - 36mm    Standard  #424-215Ti

• Minimum to Maximum   23mm - 32mm    Small   #424-216Ti

View "Bonding Video" under Resources at the top of the page.

Pack of 1 pair - wrench included.
